Ralla System

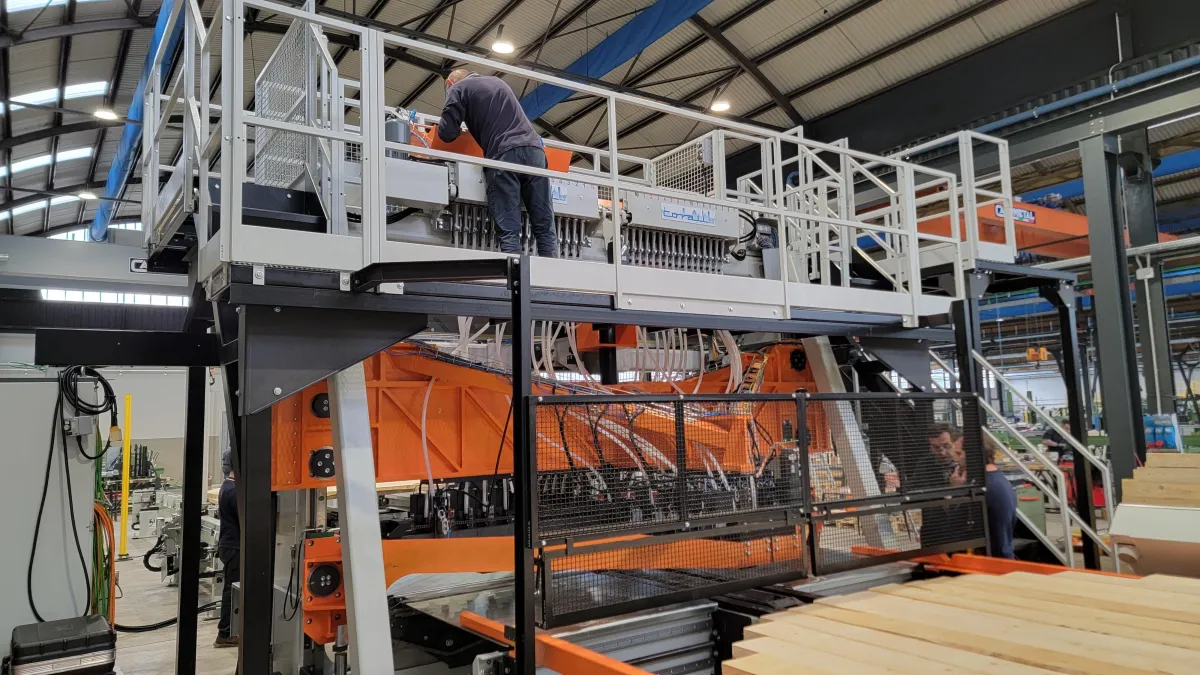

Mechanical nailing machines with continuous movement chain. The operator puts the
boards onto the chain with dogs. Board layers are turned and nailed automatically, as
are relevant post-nailing steps as various drillings, chamfering and so on.
Product type: cable drum flanges 20 – 102 in
Production: 30-120 pieces/hr. (theoretical; it can decrease according to
flange type).
Personnel: 1-2 operators
Other machines of the line: label area and many other types of drilling, modelling via
chainsaws, and making by laser or ink-jet system, totally automated board feeding,
stacking and so on.
